Elevate Search and Rescue Motor Kit

Elevate Search and Rescue Motor Kit

$ 2,995

Elevate is a removable, lightweight, and powerful motor. With this kit, we have adapted Elevate for Search and Rescue applications. Custom mounting brackets are designed to fit the Cascade Rescue Terra Tamer wheel and the software settings have been tuned for SAR use.

Questions? Fill out this form: https://form.jotform.com/241936685467169

SKU
Availability: Translation missing: en.general.icons.icon_check_circle icon 6 remaining

ORDER DETAILS

We are building in batches and delivering within 6-12 week windows to North America.

SEARCH AND RESCUE KIT CONTENTS

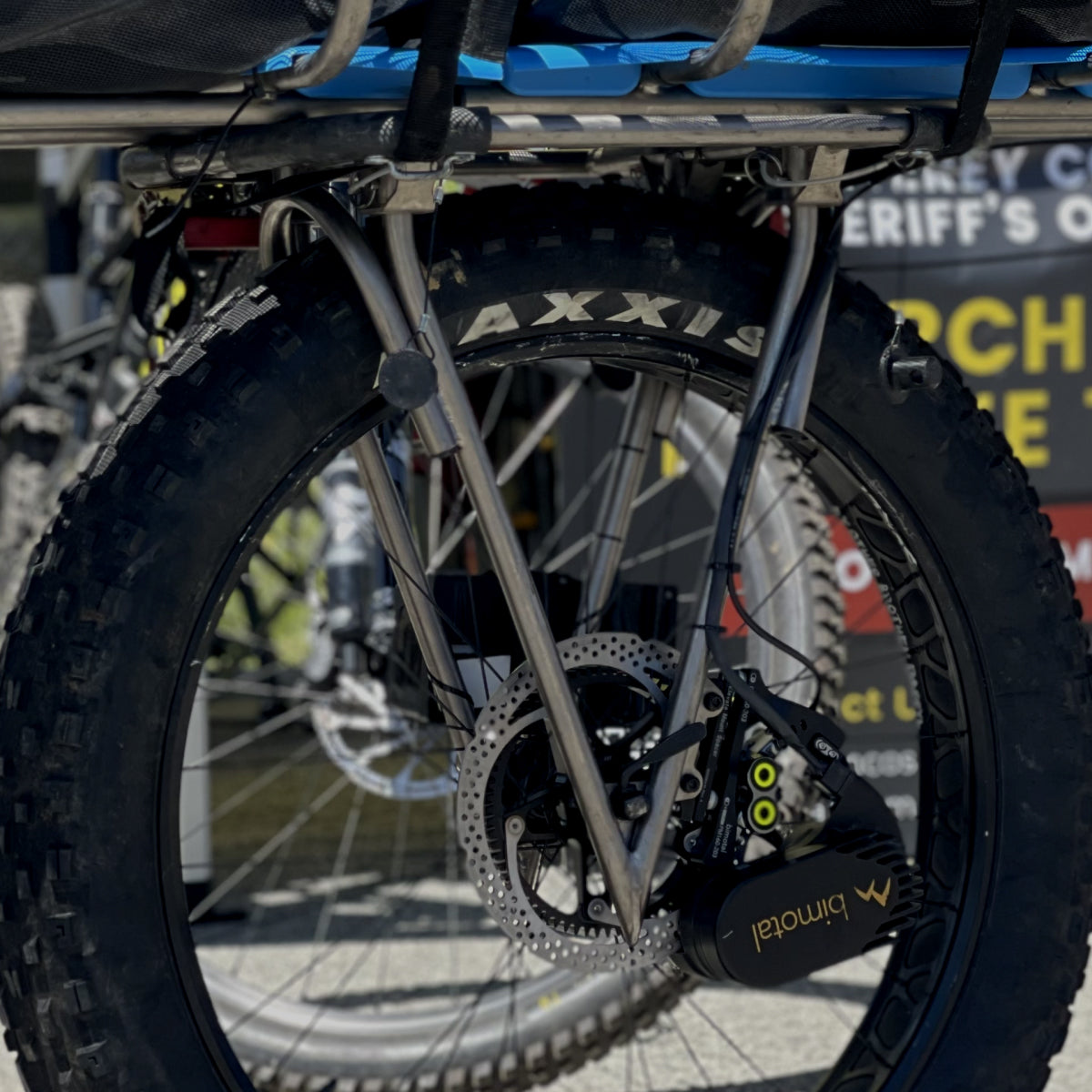

Elevate SAR kit fits the Cascade Rescue Terra Tamer Wheel.

Kit contains:
-1X Elevate System
-Dedicated SAR mounting brackets with 10+ custom CNC parts, made to fit the Cascade Rescue Terra Tamer Wheel
-Spare Battery
-Spare Quick Connect Studs
-Spare Drive Gear (27 grams, carry in field)
- Throttle - Throttle Extension

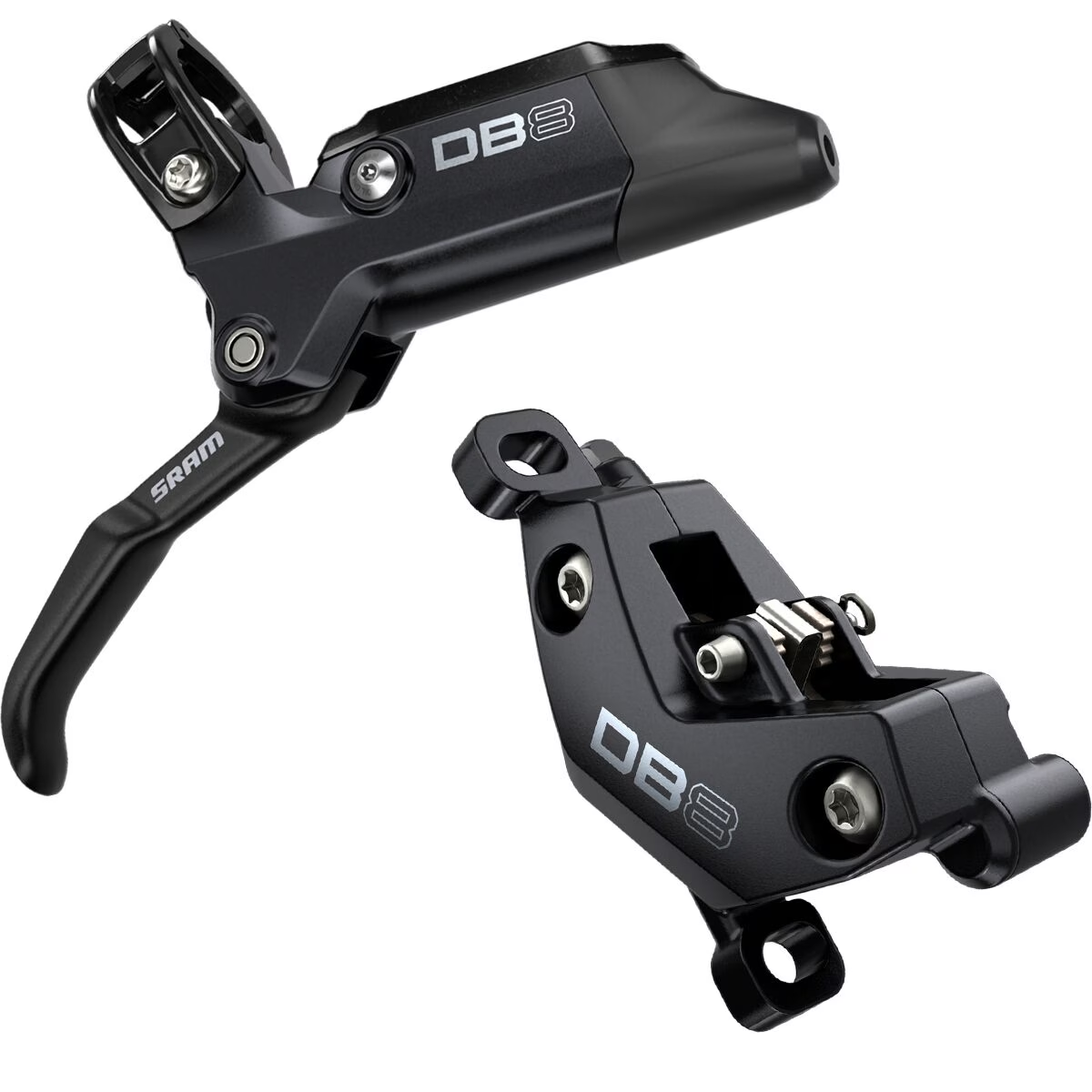

-SRAM DB8 Hydraulic Disc Brake Lever and Caliper
- Shims for for Mounting Brake Lever to 3/4" Hand Hold Tubing
- Custom Software Tune for Higher Torque and 5mph Speed Limit

KEY FEATURES

Compatible - With the Terra Tamer you have on hand
Removable - For easy transport and service
Ultra Light - Don't get weighed down
High Torque - Go further, with less effort
Modular - Move from litter to litter

Quick and Easy to Remove

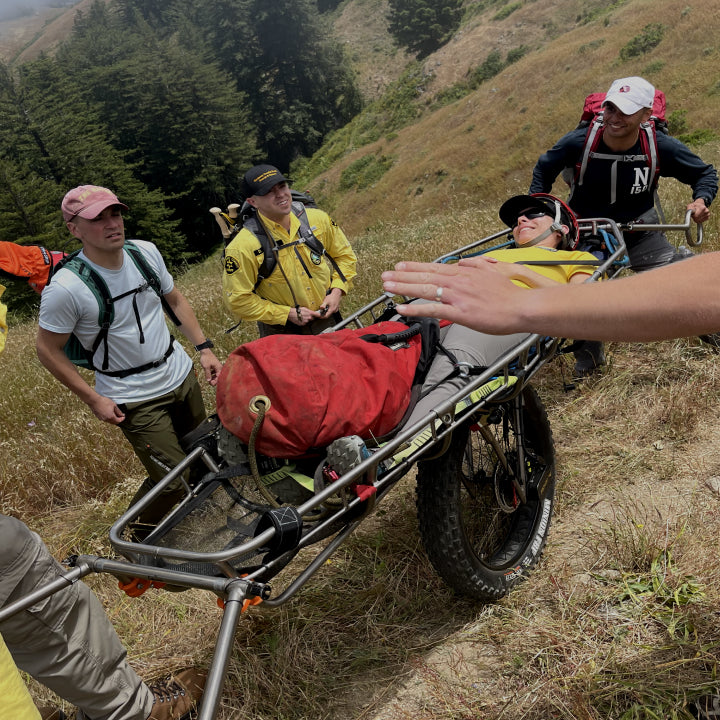

Add Elevate for missions that require longer distances, heavier loads, or steeper climbs.

Remove Elevate for easy litter pack down and transportation.

Read more

It's removable - It clicks on and off in seconds

Litter-to-Litter Sharing

For teams and counties with multiple Search and Rescue litters, get a second mount kit and to easily move the drive unit and battery pack from litter-to-litter.

Modularity and removability enables sharing.

Read more

move it from litter to litter

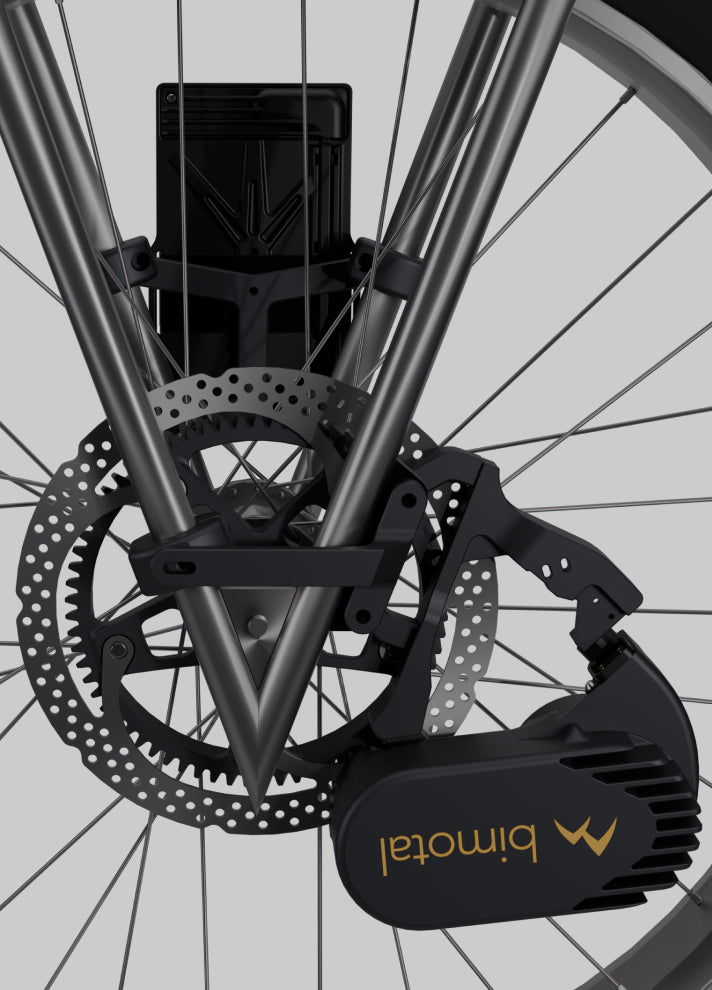

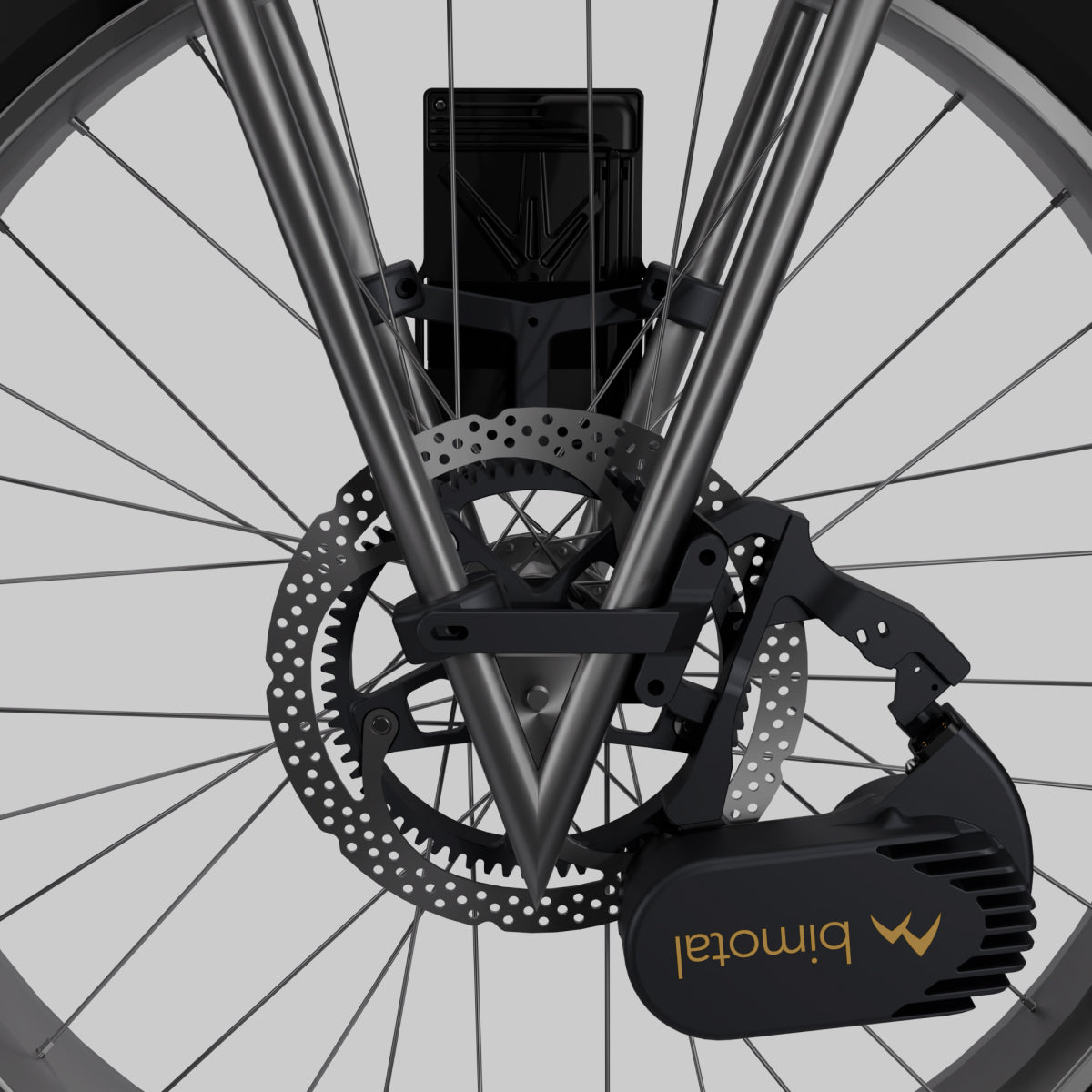

Powerful and Compact

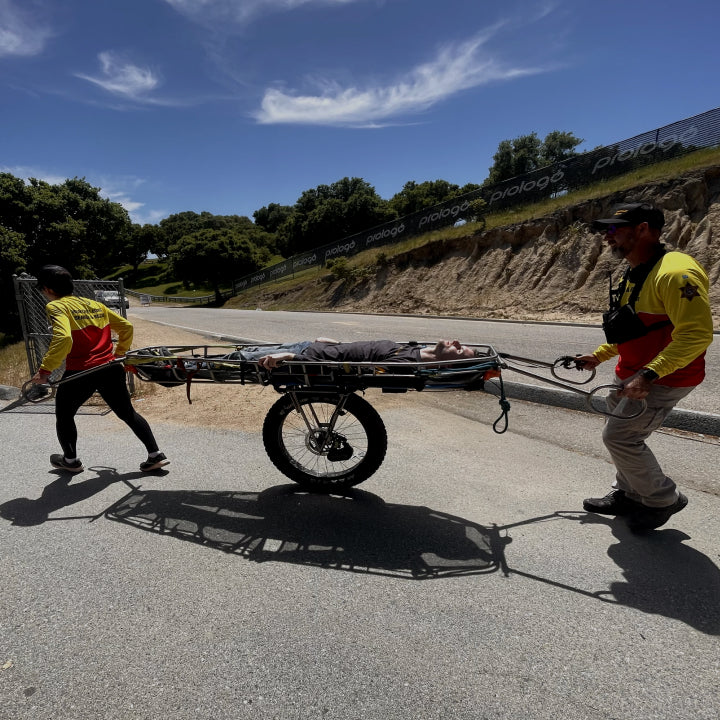

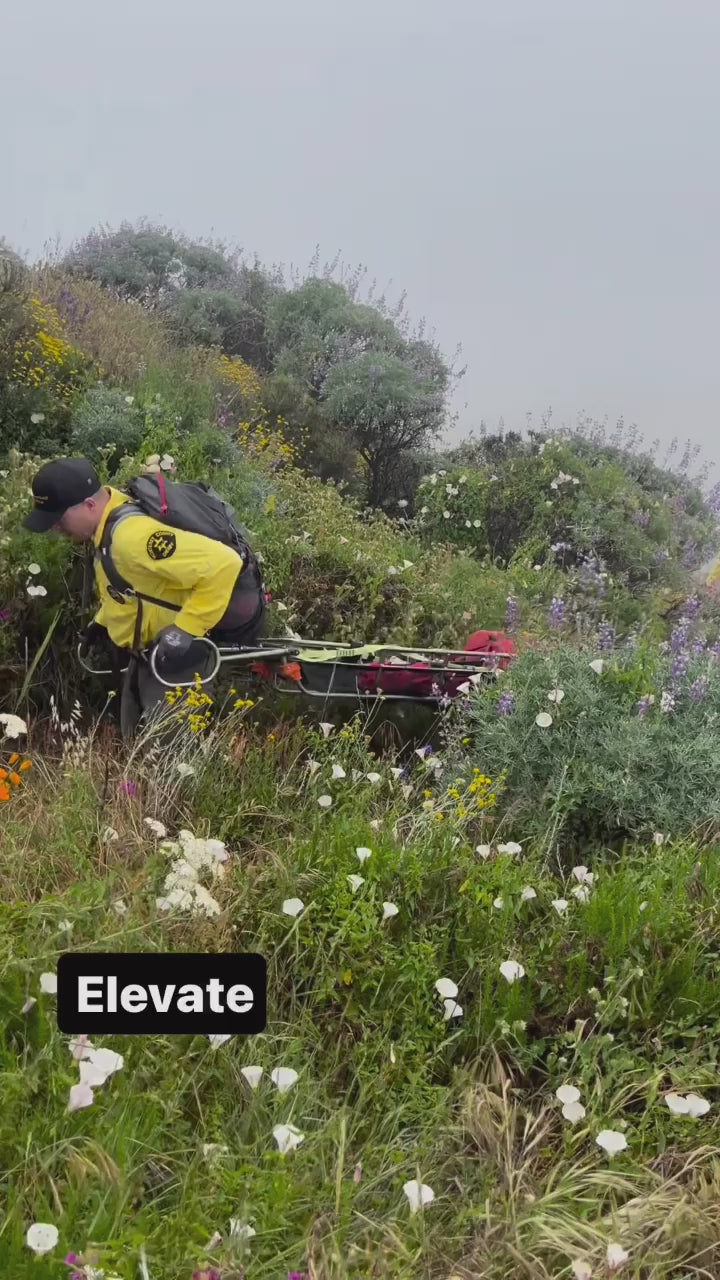

Similar size to an iPhone. Feel like you’re defying physics as your Elevated search and rescue litter pulls you up trails.

Read more
70 Nm
of torque
3.3 lbs / 1.5 kg
for the drive unit
3.4 lbs / 1.55 kg
for the battery
400 Watts
of power at the wheel
Light yet mighty

Light yet mighty

WHAT’s Included in the sar kit?

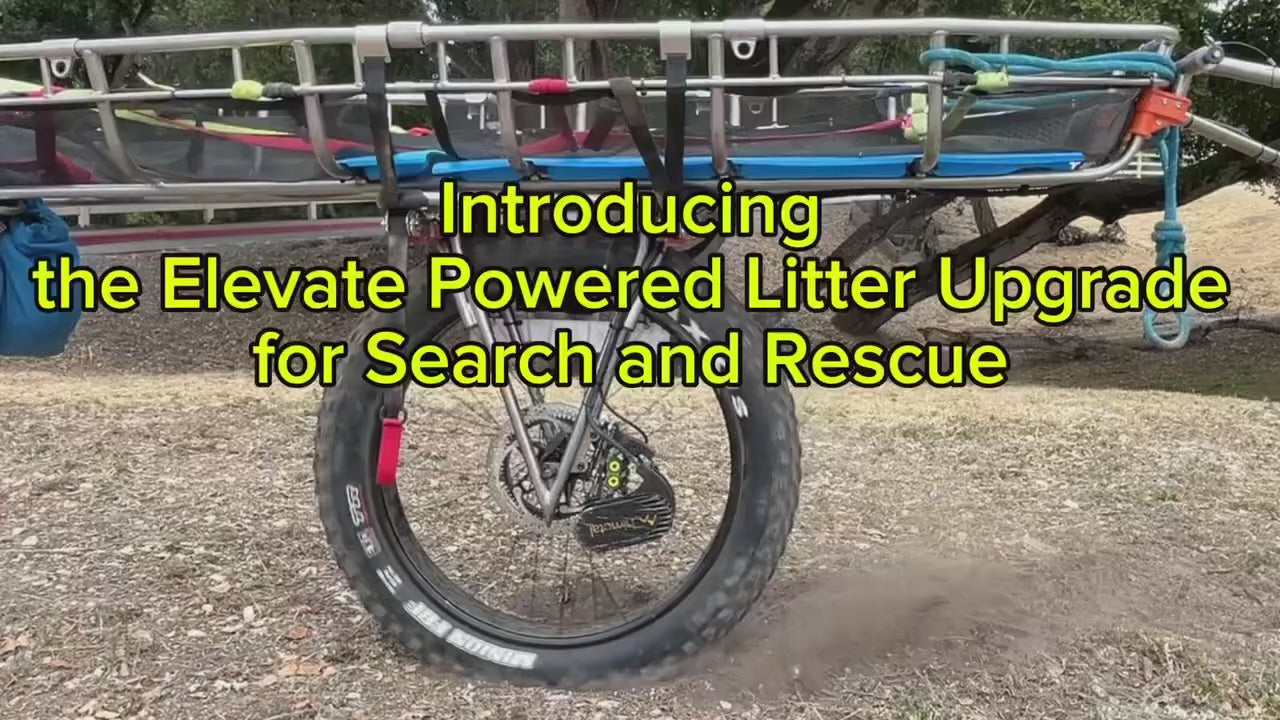

The Elevate Search and Rescue (SAR) kit is an electric assist system for Search and Rescue Litters. The kit includes the drive unit, two batteries, custom mounting hardware, custom SAR throttle and harness, custom SAR software. You supply the Cascade Rescue Terra Tamer wheel and litter. Questions? Submit a SAR jotform.

Read more
complete Elevate System
Motor, battery, throttle, charger

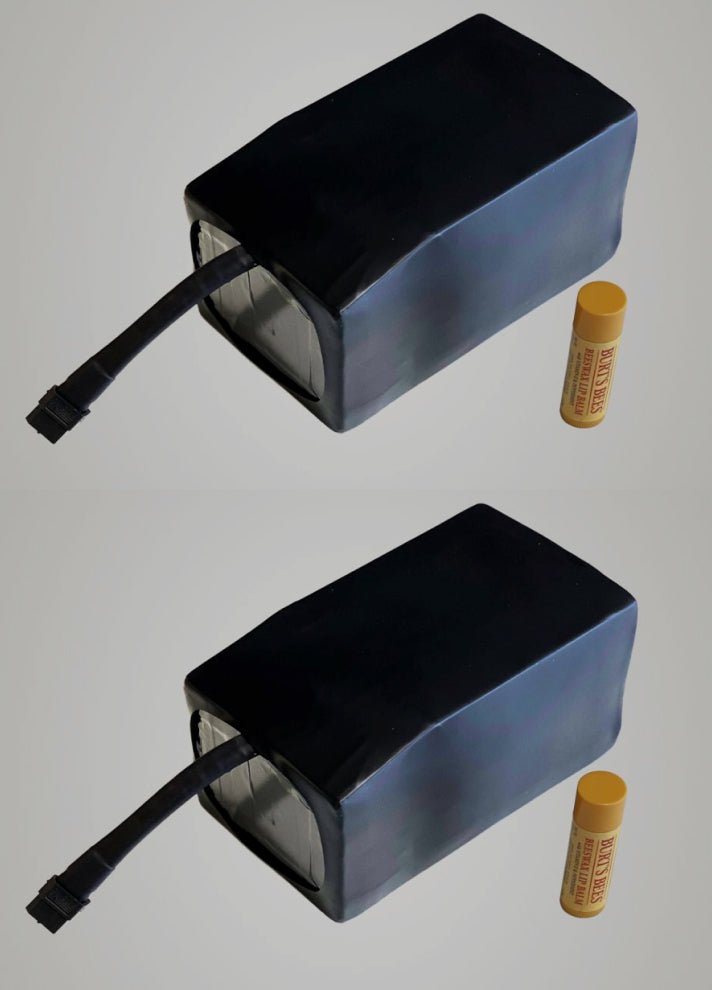

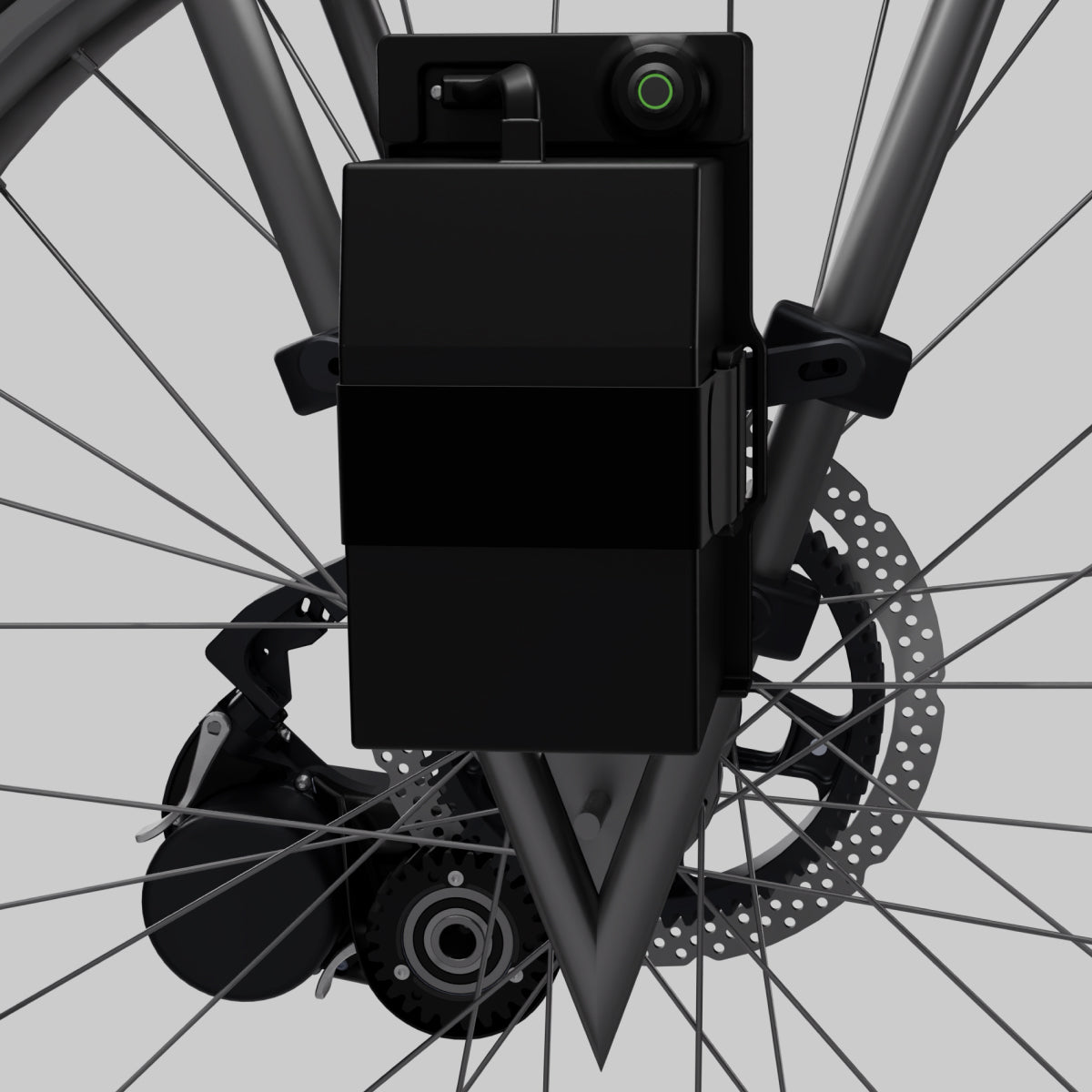

extra battery pack
300Wh capacity
MOUNTING EQUIPMENT
Custom CNC'd SAR mounting brackets,
spare drive gear,
SRAM brake caliper,
custom SAR throttle harness
custom sar software
Higher torque and speed limit:
70Nm torque, 5mph speed limit

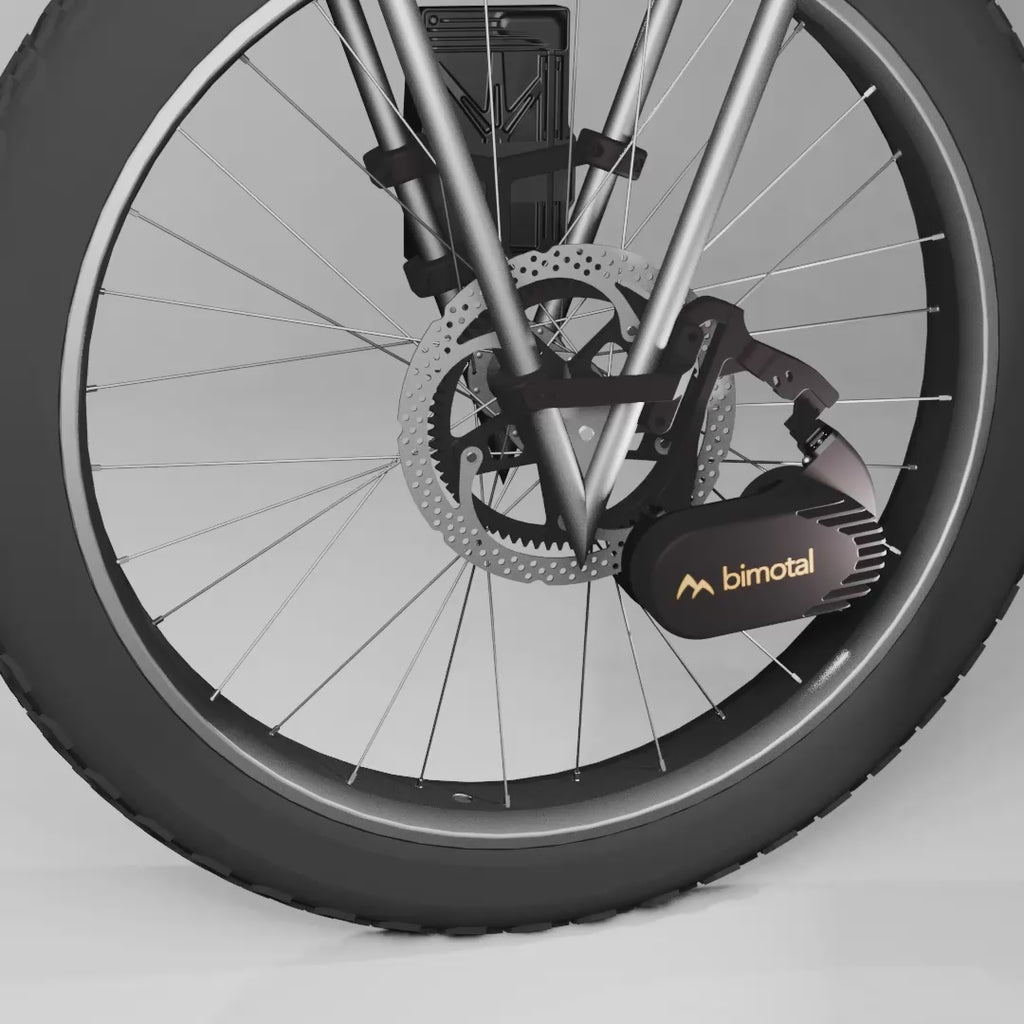

Drive unit
complete Elevate System
Motor, battery, throttle, charger
extra battery pack
300Wh capacity
MOUNTING EQUIPMENT
Custom CNC'd SAR mounting brackets,
spare drive gear,
SRAM brake caliper,
custom SAR throttle harness
custom sar software
Higher torque and speed limit:
70Nm torque, 5mph speed limit

COMPATIBILITY

Availability: Translation missing: en.general.icons.icon_check_circle icon 6 remaining

Does your SAR team have a Cascade Terra Tamer?

Confirm that your litter is in good shape, and that the brake mounts are true and match the images shown.

Refer to the images below and submit a SAR jotform with further questions.

Compatible

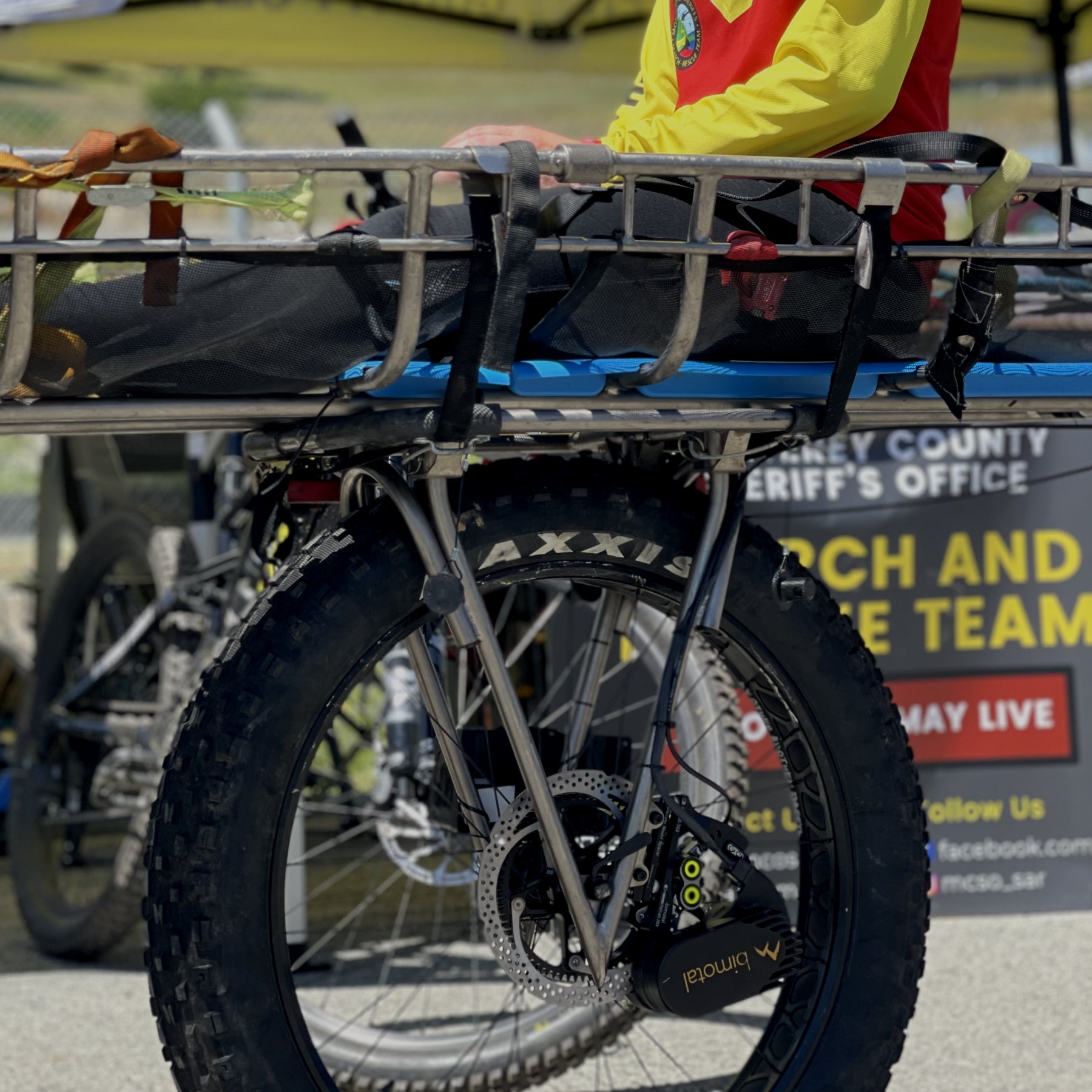

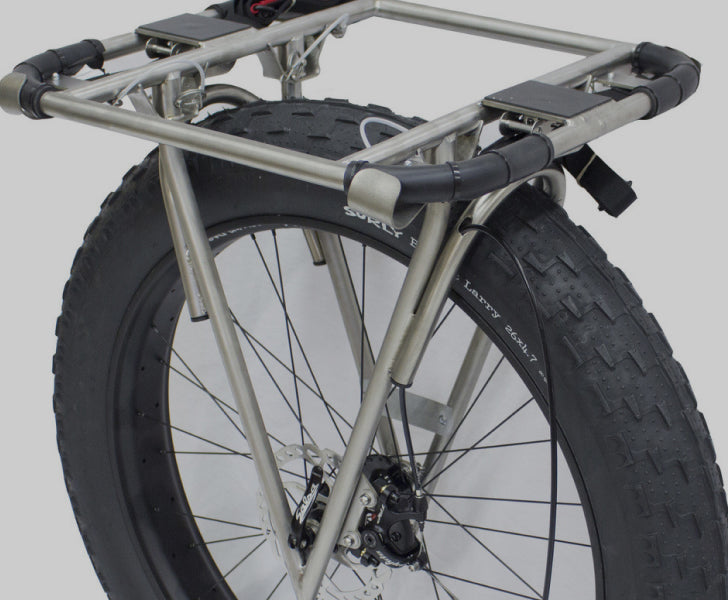

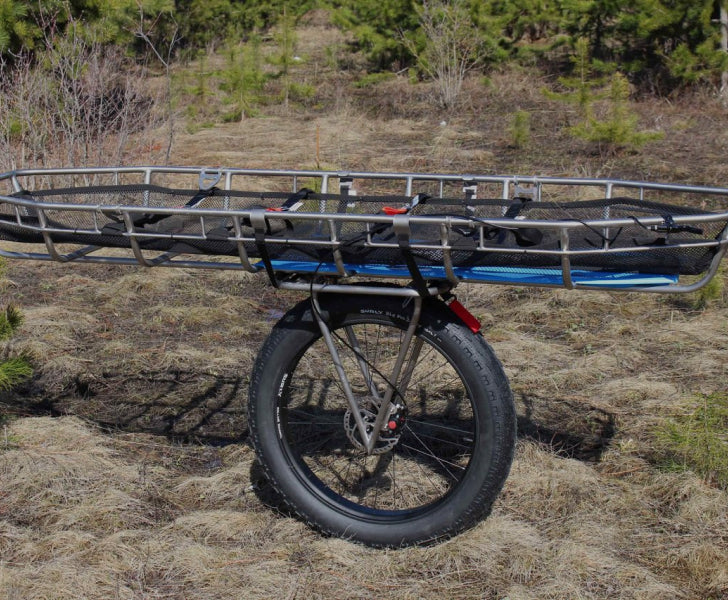

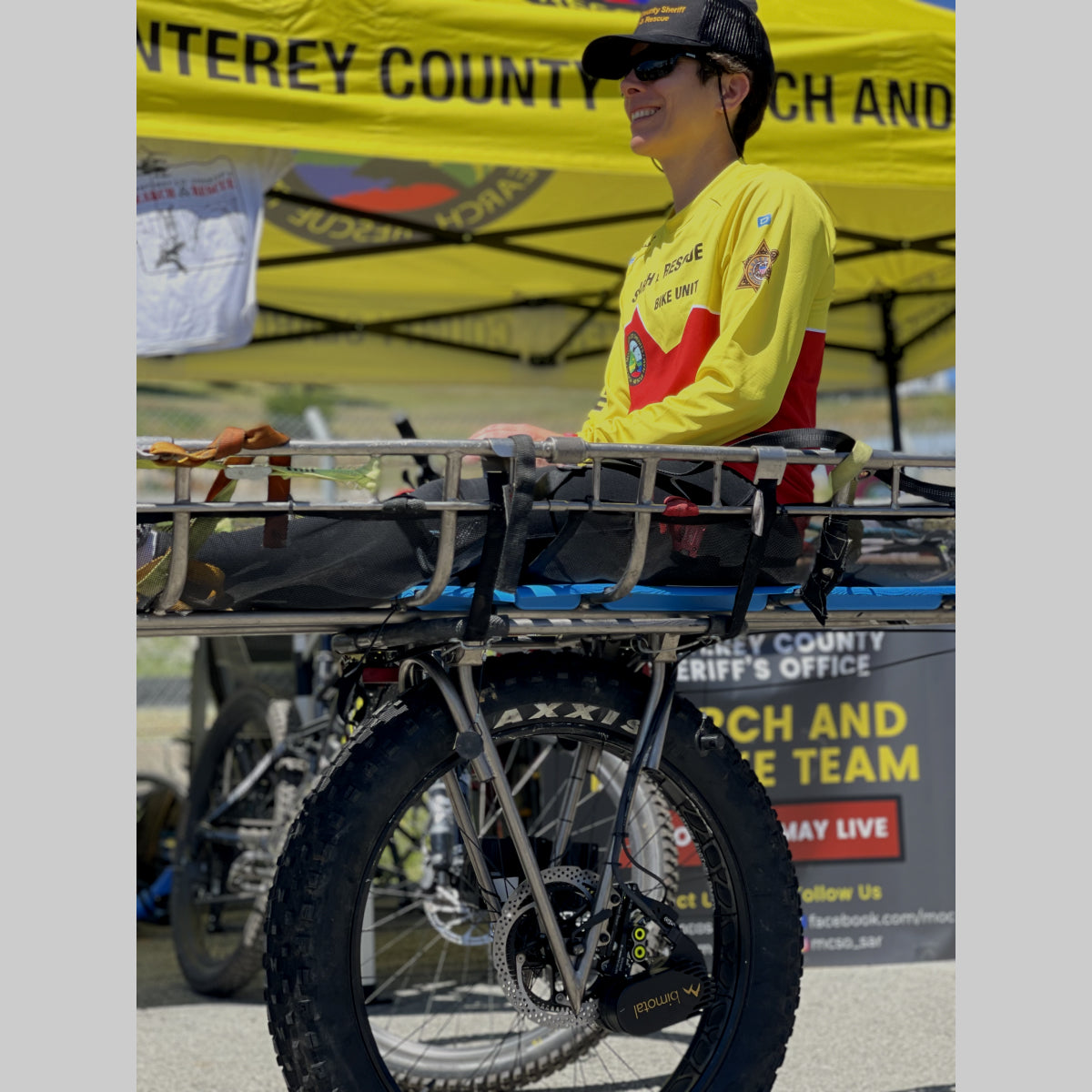

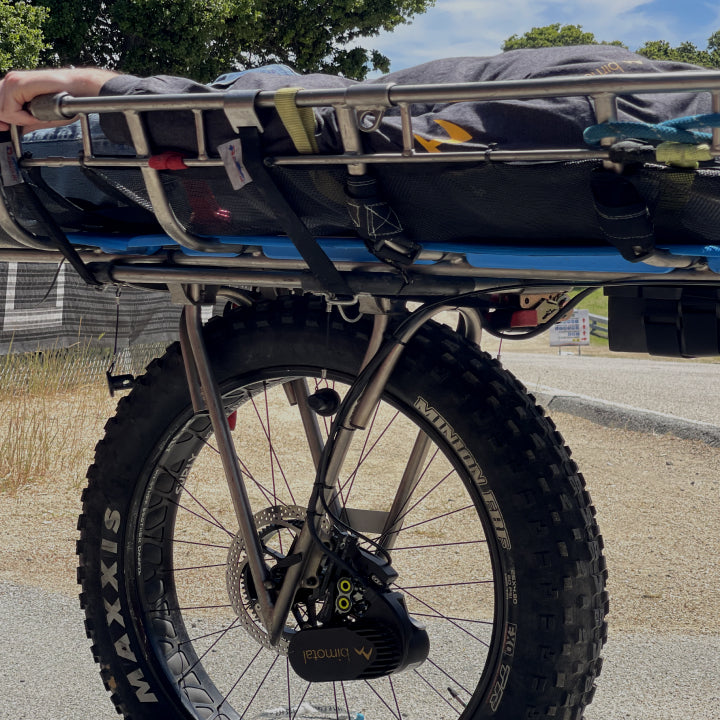

Cascade Rescue Terra Tamer
Terra Tamer Wheel
NOT YET Compatible

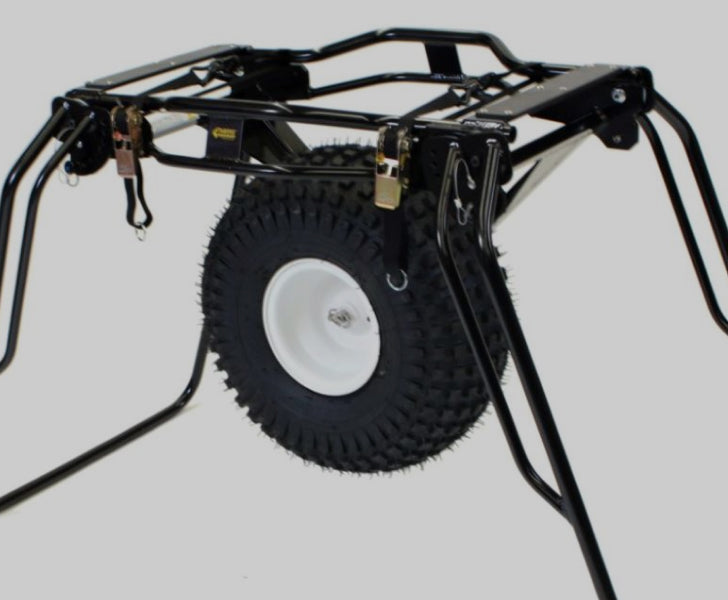

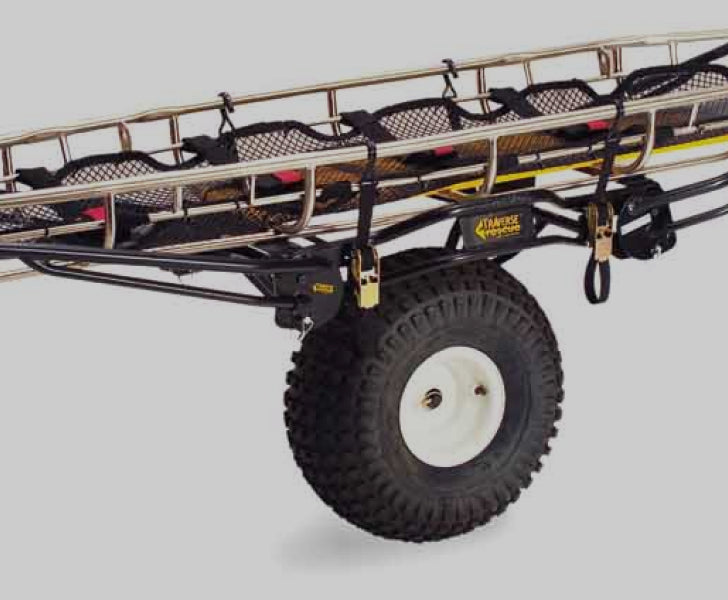

CMC Mule II
CMC Mule II Wheel
Availability: Translation missing: en.general.icons.icon_check_circle icon 6 remaining

elevate Search and rescue motor system - the basics

The Specs

Availability: Translation missing: en.general.icons.icon_check_circle icon 6 remaining
Elevate SAR Kit Specifications:
Drive unit
  • Top Speed
  • 5 mph

  • Continuous Torque
  • 70 NM

  • Burst Torque
  • Up to 100 NM

  • Power at the Wheel
  • 400 watts

  • Battery Capacity
  • 300 Watt hours

  • Battery Weight
  • 1.55 kg (3.4 lbs)

  • Drive Unit Weight:
  • 1.50 kg (3.3 lbs)
Typical Range per Charge
  • Climbing Capacity
  • 2000 feet with 200-lb payload, assisted

  • Typical Range
  • up to 10 miles assisted

  • Trail Use Duration
  • 2-5 hours

  • Typical Charge Time
  • 1.5 hours
Availability: Translation missing: en.general.icons.icon_check_circle icon 6 remaining

Reliability and service

We prioritize reliability and exceptional serviceability. SAR applications - please carry a spare drive gear in the field (27 gram weight).

Read more

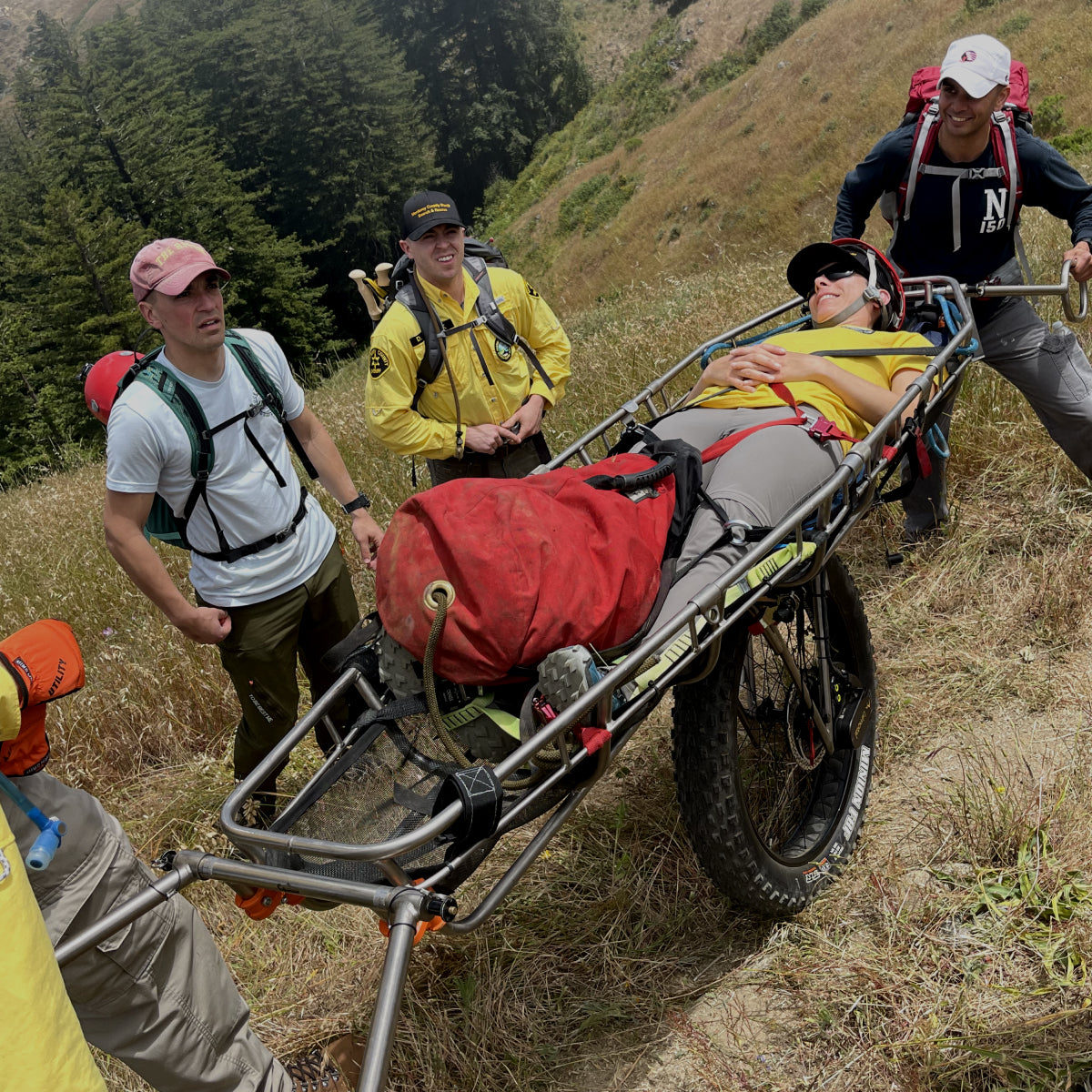

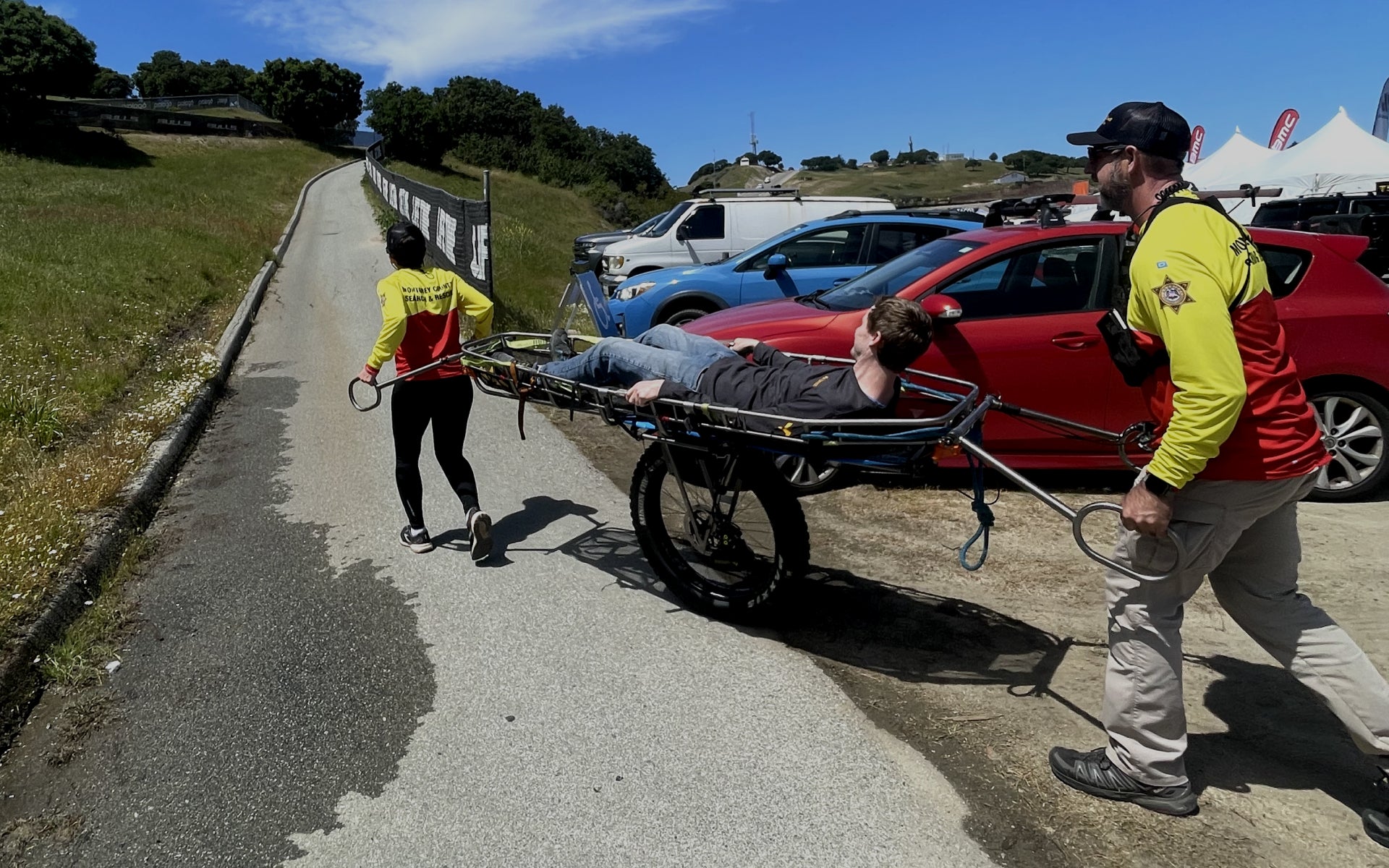

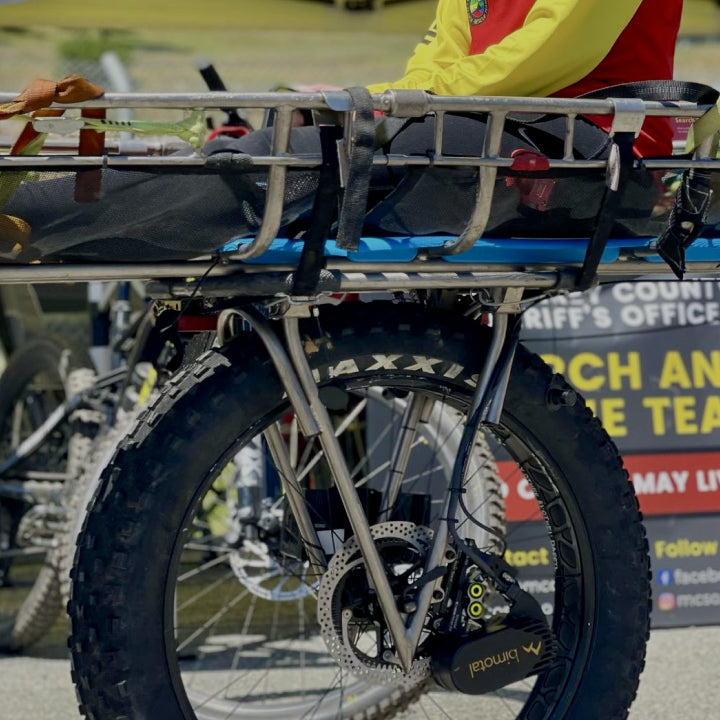

RIDE TESTED
across use cases
RiG Testing
simulating tough scenarious
Modular
removable system
Servicable
easily shipped to bimotal
Dog with glasses

extensive reliability testing performed

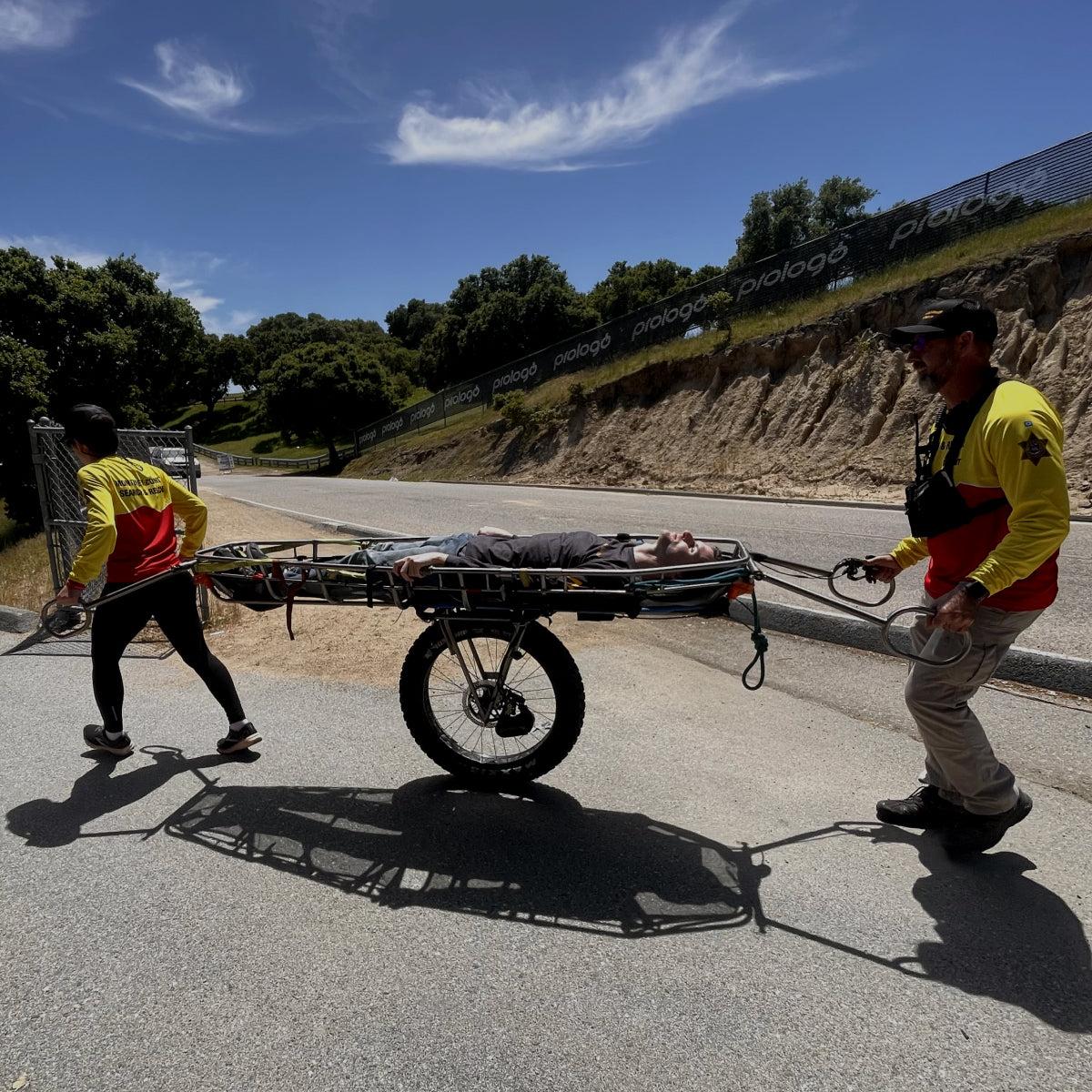

RIDE TESTED

We’ve ridden Elevate down stairs repeatedly, and on some of the harshest terrain. We’ve iterated our quick connects and mounting system numerous times to arrive at a solution that holds up for intense riding.

Read more
Long climbs
mileage accumulation
Stair smashing
testing mount system
on/off cycles
repeated install / removal
heavy users
200+ lb (100 kg) riders

Ride tested

RIG TESTED

We come from an automotive background in power electronics and have extensive experience in reliability testing. Mountain bikes are a challenging application but we’re up to the task and constantly growing our testing capabilities.

Read more
peak torque
acceletared life testing
Pulsed torque
simulated start stop
Thermal
characterization and cycling
environmental
ingress protection

Rig tested

MODULAR AND EASY TO REMOVE FOR SERVICE

Have a problem? Remove the drive unit or battery, ship it to us, and we’ll get it sorted. Your litter is still fully functional as an anologue litter, and if units are available we’ll send you a replacement as we repair your original unit!

Read more
fast removing
5 seconds or less
Easy to ship
small and light
keep using
your analogue litter
modular
for rapid replacement
Drive unit

Easily Removable for service

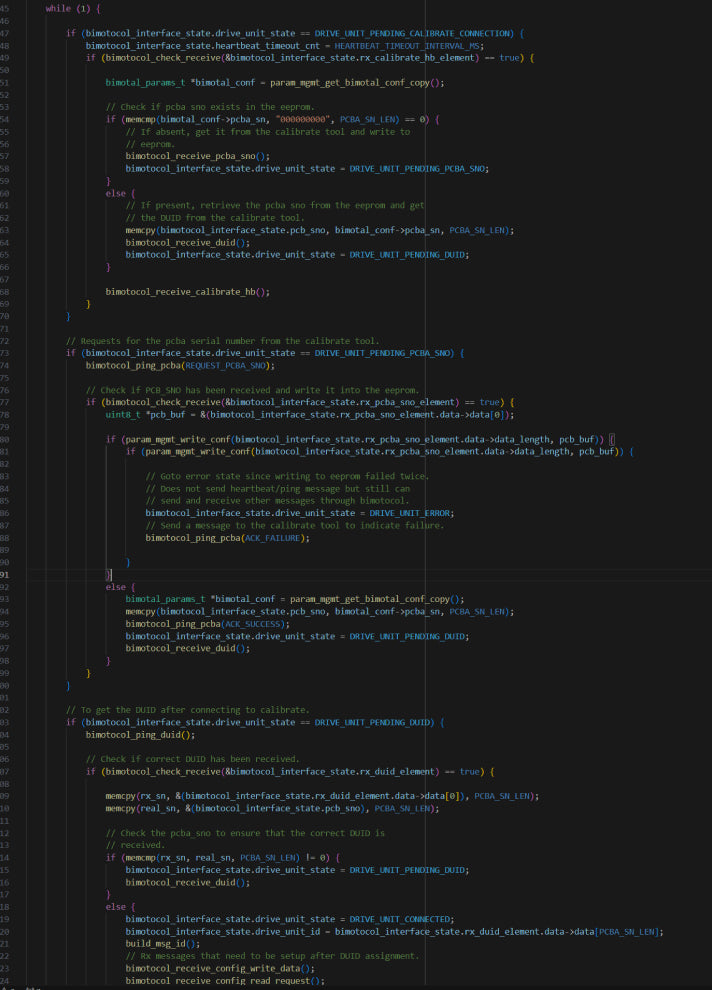

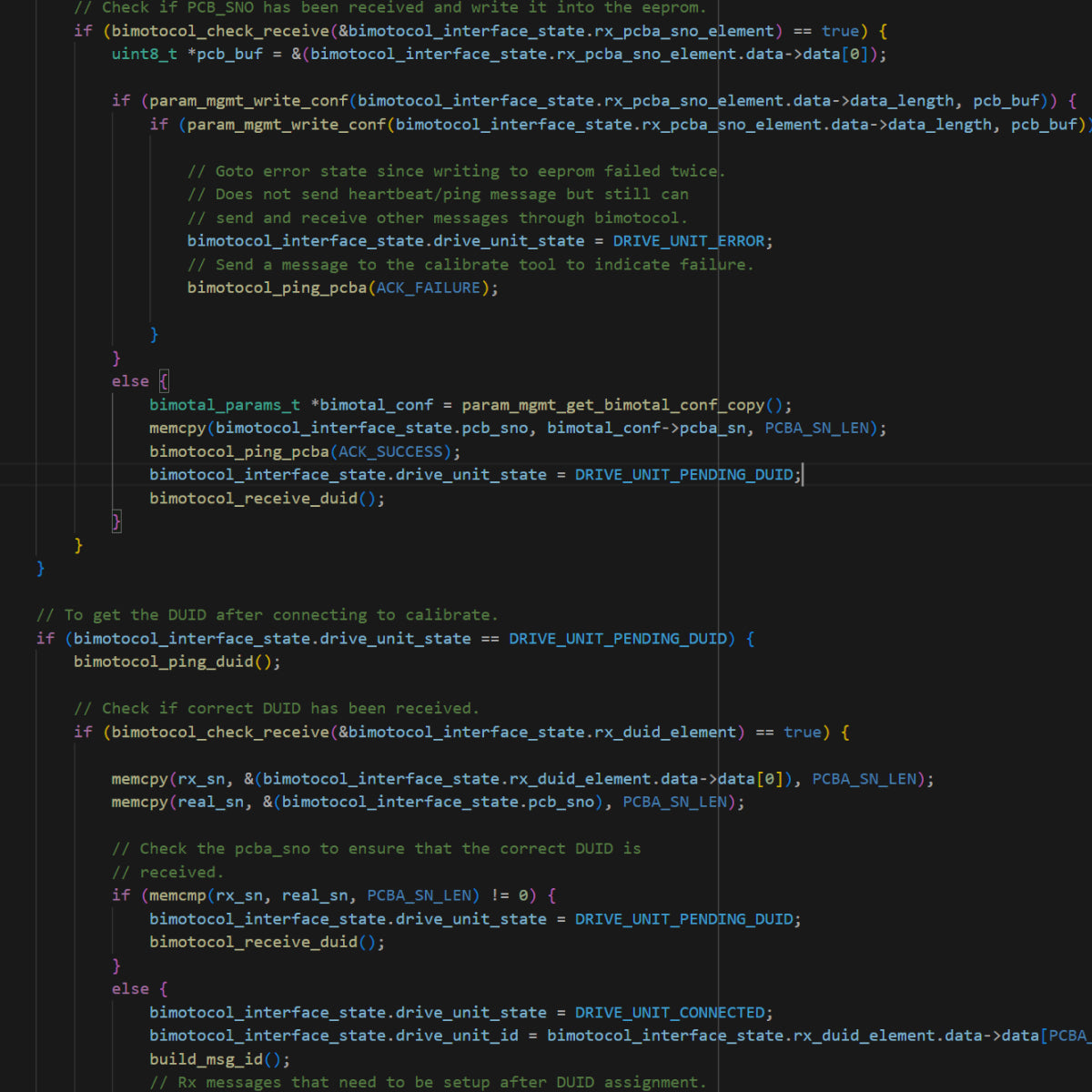

A technology product at its core
